- 商品
- 详情
- 否是否进口
- 墨西哥产地
- Cooper Bussmann/库柏品牌

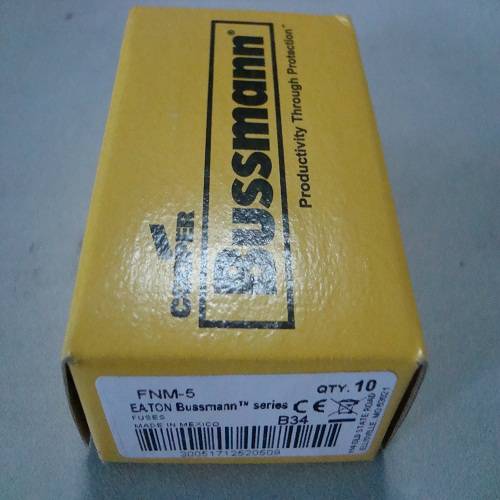

Cooper Bussmann by Eaton FNM-5
Size / Dimension：10.30 X 38.10mm Fusetron 13/32 x 1 1 /2 Time-Delay Fuses
FNM series ， 13/32 x 1-1/2 250Vac time-delay fuses, 250Vac
Approvals CE, CSA, UL
FNM 13/32 x 1-1/2 250Vac time-delay supplemental fuses
Product Attributes :
Dual-Element, Time-Delay For circuits with high inrush currents
Volts: 250Vac or less
Amps: 1 /10-30A
Interrupting Ratings: — 3*** (1 /10-1A @ 250Vac)
— 100A (11 /8-31 /2A @ 250Vac)
— 200A (4-10A @ 250Vac)
— 10,000kA (1 /10-10A @ 125Vac)
— 10,000A (12-30A @ 250Vac)
Agency Information: CE; UL Listed Std. 248-14, 0-30/250Vac, File E19180, Guide JDYX;
CSA Certified, 1-30/250Vac, Class 1422-01, File 53787.
| FNM | FNM-5 |
| Dimensions | 13/32" x 1-1/2" (10.3 x 38.1mm) |
| Volts | 250Vac |
| Amps | 1/10A-30A |
| IR | - 10kA Vac RMS Sym |
FNM 13/32 x 1-1/2 250Vac time-delay supplemental fuses
FNM-1/10 FNM-8/10 FNM-2-1/2 FNM-6-1/4 FNM-1/8
FNM-1 FNM-2-8/10 FNM-7 FNM-15/100 FNM-1-1/8
FNM-3 FNM-8 FNM-2/10 FNM-1-1/4 FNM-3-2/10
FNM-9 FNM-1/4 FNM-1-4/10 FNM-3-1/2 FNM-10
FNM-3/10 FNM-1-1/2 FNM-4 FNM-12 FNM-4/10
FNM-1-6/10 FNM-4-1/2 FNM-15 FNM-1/2 FNM-1-8/10
FNM-5 FNM-20 FNM-6/10 FNM-2 FNM-5-6/10
FNM-25 FNM-3/4 FNM-2-1/4 FNM-6 FNM-30
E-Mail : sales@huayunxing.com QQ: 1670887505
在线问
- 否
- 墨西哥
- Cooper Bussmann/库柏
- FNM-5
- FNM
- 管式熔断器
- 250
- 5
- 半导体元件
- 无
- FNM-5
- 慢速熔断器
- 5
- 5
- 35 A at 250 VAC, 10 kA at 125 VAC
- 10.3 x 38.1mm
- UL
- fnm-5
- 电动机控制与保护
- 户内式
- 是
- 否
- 无
- FNM-5
- 10
- 面议
- 否
