- 商品
- 详情
参数
- INNODISK品牌

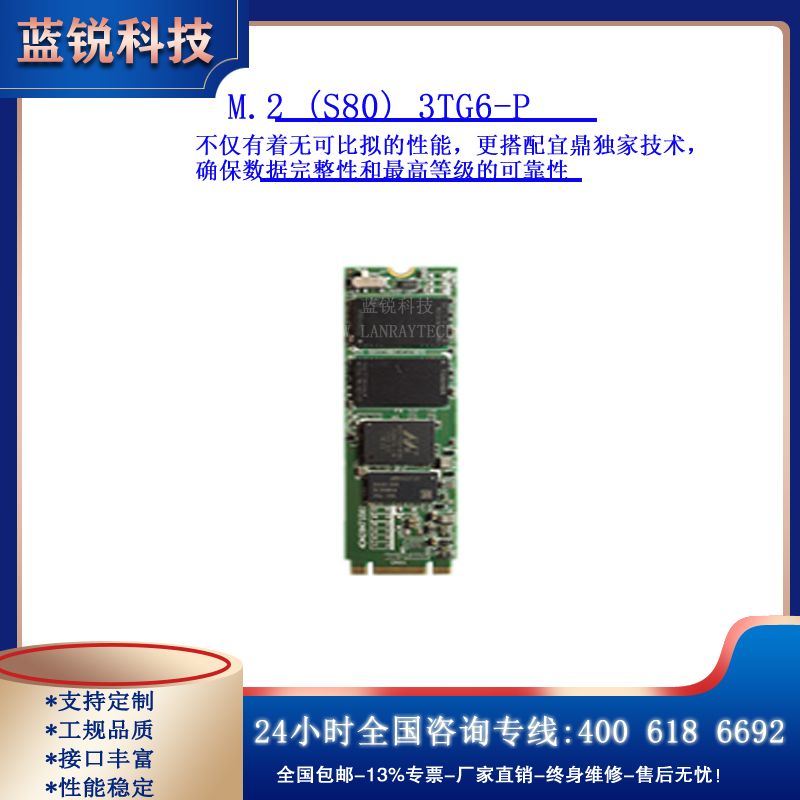

- M.2 (S80) 3TG6-P型号
- 工控电脑设备类型
上海 宝山区
30天内发货
1000个
产品详情
★SATA III soultion for industrial field
★High IOPS
★AES-256bits encryption
★Excellent random performance
★End to end data path protection
★iData Guard for abnormal power failure
★iCell technology for data protection (optional)
★Compatible with M.2 2280-D2-B-M standard
| Module Name | M.2 (S80) 3TG6-P |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | 3D TLC |
| 3D NAND Type | 64-layer | 96-layer | 112-layer |
| Capacity | 128GB~2TB |
| Sequential R/W (MB/sec, max.) | 560/520 |
| Max. Power Consumption | 3.1 W (939mA x 3.3V) |
| Max. Channels | 4 |
| Thermal Sensor | Y |
| ATA Security | Y |
| External DRAM Buffer | Y |
| H/W Write Protect | Optional |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 22.0 x 80.0 x 3.8 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
产品料号：
| Operation Temp. | 128GB | 256GB | 512GB | 1TB | 2TB |
Standard Grade (0°C ~+70°C) | DGM28-A28M71*C%#F(S) | DGM28-B56M71*C%QF(S) | DGM28-B56M71*W%QF(S) | DGM28-01TM71*C%QF(S) | DGM28-02TM71*C%QF |
Industrial Grade (-40°C ~ +85°C) | DGM28-A28M71*W%#F(S) | DGM28-B56M71*W%QF(S) | DGM28-C12M71*W%QF(S) | DGM28-01TM71*W%QF(S) | DGM28-02TM71*W%QF |
*. E: 64 layers 3D TLC/G: 96 layers 3D TLC/K: 112 layers 3D TLC
%. 1/A/B: PCB version control
#. D: Dual channels/Q: Quad channels
S.: Single side
为您推荐
在线问
产品参数
- INNODISK
- M.2 (S80) 3TG6-P
- 工控电脑
- 现货
- 支持
- 1-3天
- 全国联保
- 三年
- 提供发票
