参数
- INNODISK品牌

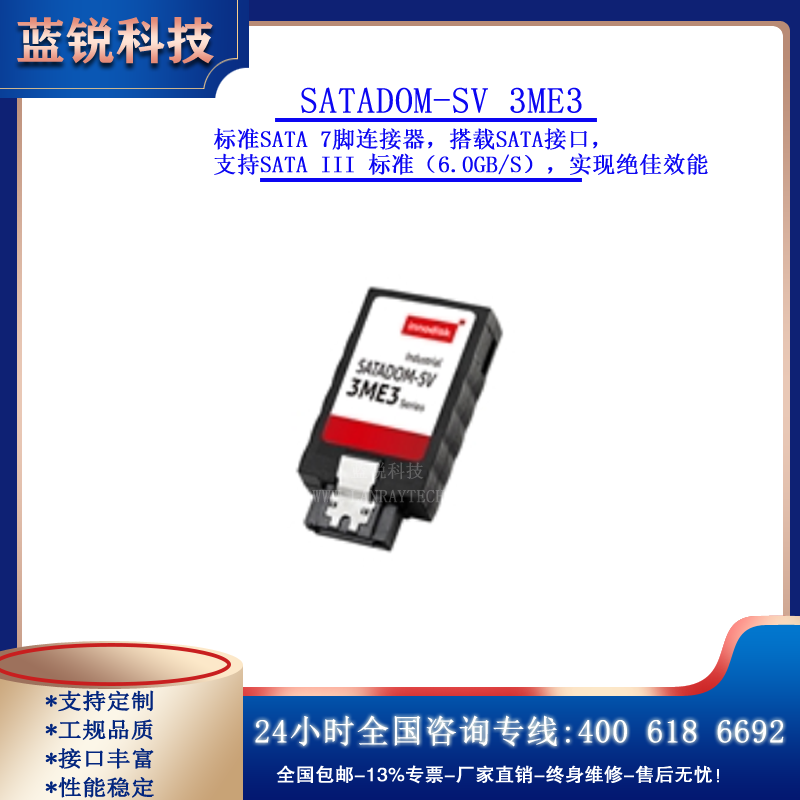

- SATADOM-SV 3ME3型号
- 工控电脑设备类型
上海 宝山区
30天内发货
1000个
产品详情
★Best boot drive solution for server and embedded system
★SATA 6Gb/s interface
★High IOPS to reduce boot up timing
★Built-in Pin 7 power supply
★DRAM-less, *** data integrity
★Innovative Firmware Algorithm
★Anti-vibration mechanical design
★Built in iData Guard
| Module Name | SATADOM-SV 3ME3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Vertical |
| Capacity | 8GB~128GB |
| Sequential R/W (MB/sec, max.) | 200/80 |
| Max. Power Consumption | 1.8W (5V x 370mA) |
| Max. Channels | 2 |
| Thermal Sensor | Wide Temp. only |
| ATA Security | Y |
| H/W Write Protect | N |
| Pin 7 Power | Y |
| Pin 8 Power | Optional |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 20.9 x 39.5 x 7.9 |
| MTBF | >3 million hours |
| Shock | 1500G@0.5ms |
| Vibration | 20G@7~2000Hz |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
产品料号：
| Operation Temp. | 8GB | 16GB | 32GB | 64GB | 128GB |
Standard Grade (0°C ~ +70°C) | DESSV-08GD09*C1SC(F) | DESSV-16GD09*C1SC(F) | DESSV-32GD09*C1SC(F) | DESSV-64GD09*CADC(F) | DESSV-A28D09*CADC(F) |
Industrial Grade (-40°C ~ +85°C) | DESSV-08GD09*W1SC(F) | DESSV-16GD09*W1SC(F) | DESSV-32GD09*W1SC(F) | DESSV-64GD09*WADC(F) | DESSV-A28D09*WADC(F) |
