迈创厂家供应蓝牙耳机USB充电器手机打标刻字紫外激光打标机
¥47000.00
迈创厂家供应数码产品车载用品插卡音箱打标刻字紫外激光打标机
¥47000.00
迈创厂家供应小米手机华为手机三星手机打标刻字紫外激光打标机
¥47000.00
迈创厂家直销手机壳手机零件手机配件打标刻字紫外激光打标机
¥47000.00
迈创厂家供应手机器件手电筒迷你音响打标刻字紫外激光打标机
¥47000.00
迈创厂家供应网络产品路由器网卡打标刻字紫外激光打标机
¥47000.00

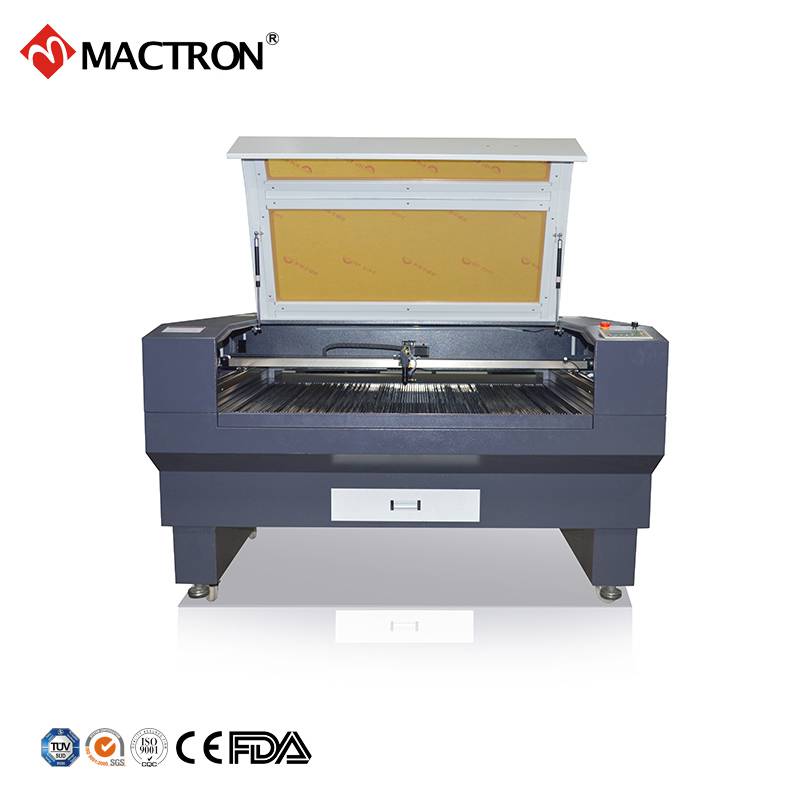

l 机器简介Model Introduction
该系列可配备旋转装置和升降平台装置，实行电脑软件自动控制，既可以满足大体积物体的表面雕刻，也可以有效实现圆形物体的立体雕刻效果，具有很强的兼容性。此系列主要应用于切割及雕刻广告装饰、工艺礼品、印章、模型等行业材料，如亚克力、双色板、PVC板、木板、中纤板、橡胶、塑料等。
This series is equipped with rotary apparatus, auto focusing system and automatic up-down working table. Because of being controlled by computer software automatic, it can not only engrave on the surface of products, but also carve on cylinders with vivid designs. The compatibility of the system is very high. It is applied for engraving and cutting in the fields of advertisement, decoration, crafts and gifts, stamp mode industries. For example, acrylic, double-colored board, plywood, MDF, rubber, plastics etc.
l 可选配件Optional Accessories
l 技术参数 Technical Parameter
型号 / Model | 工作幅面 / Processing Area | 激光功率 / Laser Power |
MT-9060R/U/F | 900*600MM | 70W |
MT-1080R/U/F | 1000*800MM | 70W/80W |
MT-1280R/U/F | 1200*800MM | 70W/80W/100W/130W |
MT-1390R/U/F | 1300*900MM | 80W/100W/130W/150W |
MT-1610 R/U/F | 1600*1000MM | 80W/100W/130W/150W |
MT-1813 R/U/F | 1800*1300MM | 80W/100W/130W/150W |
D = Double Heads, T = Three Heads, F = Four Heads, Customized Specification is Available / 配置可定制 | ||
激光类型 / Laser Type | 国产CO2激光器 / Co2 Glass Laser Tube (RF Metal Co2 Laser Tube Optional) |
激光波长 / Wavelength | 10.6um |
升降范围 / Lifting Range | 200-800MM |
夹具范围 / Rotary Clamp Diameter | 20 -300MM |
切割速度 / Cutting Speed | 0-36000MM/Min |
雕刻速度 / Engraving Speed | 0-64000MM/Min |
焦距 / Focal Length | 38.1, 50.8, 63.5, 76.2, 101.6MM |
定位精度 / Location Precision | ±0.015MM |
最小线宽 / Min. Line Width | 0.15-0.3MM |
冷却方式 / Cooling Mode | 水冷及保护系统 / Water Cooling and Protection System |
控制系统 / Controlling System | DSP高速控制器 / DSP High Speed Controller |
支持文件格式 / Graphic Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
工作电源 / Power Source | AC 110/220V±10%, 50/60Hz |
工作温度 / Working Temperature | 0-40 ℃ |
工作湿度 / Working Humidity | 5%-85%(无凝水 / No Condensation) |
工作环境 / Working Environment | 干净、无灰尘或灰尘较少 / Clean, Free of Dust |
整机功率 / Gross Power | <1250W |
安全防护等级 / Safety Protection Class | Ip54 |
激光器安全等级 /Laser Generator Safety Class | 4级 / Ⅳ |
l 适用材料 Applicable Material
橡胶、塑料、有机玻璃、布料、皮革、毛料、瓷砖、水晶、玉石、竹木制品等其他非金属材料。
Rubber, plastic, organic glass, cloth, leather, wool fabric, ceramic tile, crystal, jade, bamboo product, wooden product and other nonmetal materials.
l 应用行业 Applicable Industry
本类型机器适用于模型、工艺品、竹木制品、广告装饰、建筑装潢、包装印刷、纸制品等行业。
This type of machine is suitable for models, handicrafts, bamboo and wood products, advertising decoration, architectural decoration, packaging and printing, paper products and other industries.
l 样品展示 Sample Display
