STANLEY PLASTITE® 48 系列自攻螺钉

面议

参数

STANLEY POP品牌
美标#0型号
自攻螺钉类别

发货地广东佛山 30天内发货供货总量10000个

佛山纳特科技有限公司 5年: 进入店铺在线咨询

STANLEY PLASTITE® 45系列自攻螺钉面议

STANLEY DURO PT系列自攻螺钉 S22 面议

STANLEY Powergrip系列自攻螺钉 M3-M8 面议

STANLEY PlasTORX系列自攻螺钉 M4 – M12 面议

ELCO 铁镀锌自攻螺钉 EDA系列 #6，#8 面议

ELCO 铁镀锌自攻螺钉 EDD,EDB系列 #10#8 面议

产品详情

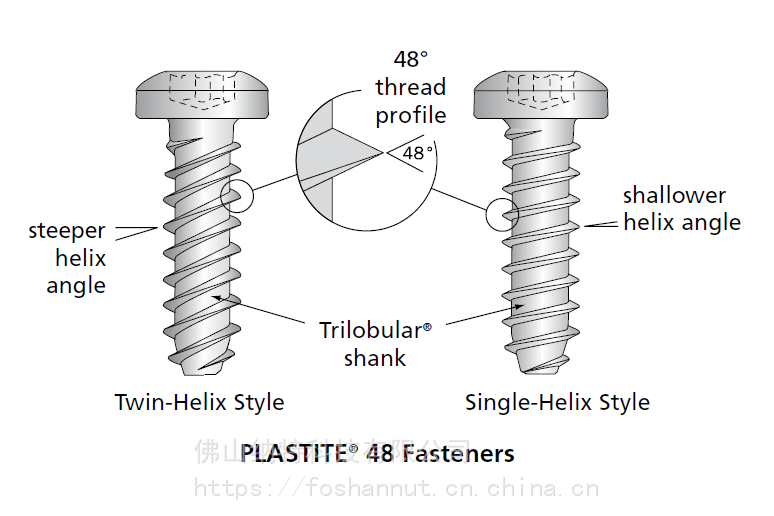

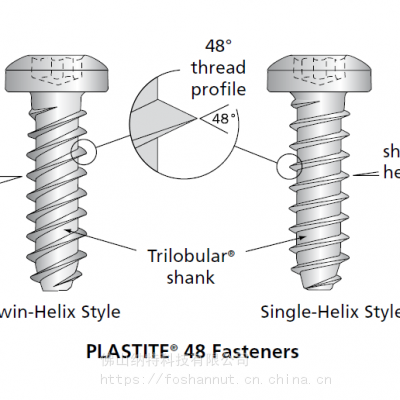

Trilobular® configuration allows displaced material to cold
flow back into relief areas
• Minimizes radial stress
• Reduces possibility of boss failure
• Eliminates need for inserts and
lock washers
• Allows design of thinner bosses
48° thread profile allows threads to penetrate deeply into
plastic material
• Generates strong mating threads
• Resists vibration loosening
• Reduces probability of strip-out and pull-out
Twin lead design and steep helix angle provides greater
shear area in softer plastics (with a flexural modulus up
to 850,000 p.s.i.)
• Increases holding power
• Allows faster seating of fastener
Single lead design and narrow helix angle lowers drive
torque and failure torque in stiffer thermoplastics (with
flexural modulus between 850,000 and 1,300,000 p.s.i.)
• Creates less stress on the boss
