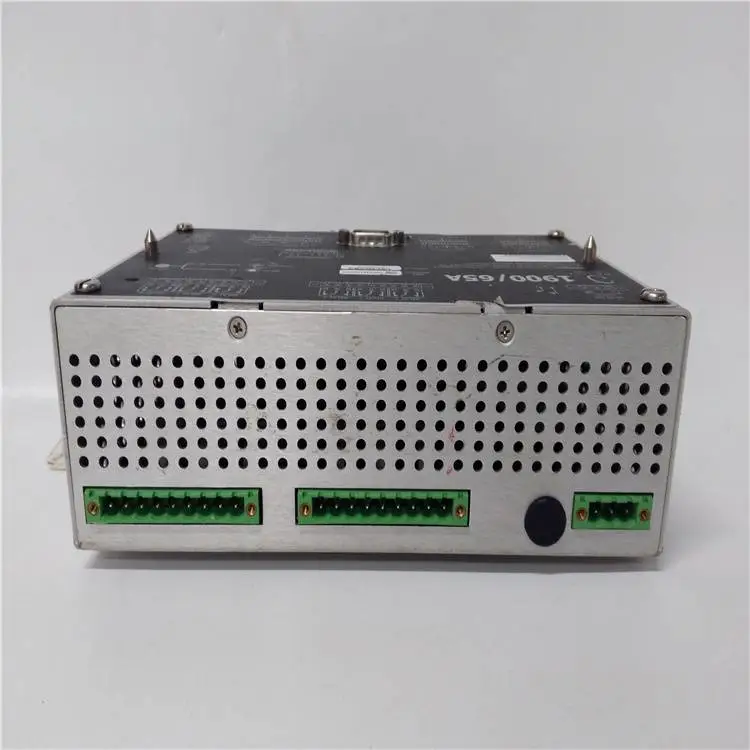

产品类别：模块卡件
品牌：DCS、PLC
电话：15270269218
联系人：叶经理
质保期：1年
加工定制：不可定制
产地/厂家：美国
名称：LCD显示设置范围单位：出厂
背景
莫迪夫。
F2.00启动模式启动模式
0：以启动频率启动
1： 首先制动，然后以起动频率起动
2： 即时启动（包括方向判断），从
转速为零时的起动频率
注：启动过程包括打开驱动器
电源故障后***次恢复交流电源，
外部故障和滑行停止时复位
1 0 ×
F2.01启动频率启动频率0.20~60.00Hz 0.01Hz 0.50Hz○
F2.02启动频率保持
时间
保持时间0.0~10.0s 0.1s 0.0s○
F2.03直流注入制动
起动电流
吹牛
开始
取决于驱动器的类型
P型：驱动器额定电流的0.0～80.0%
G型：0.0～100.0%驱动器额定电流
0.1% 0.0% ○
附录1参数93
EV2000系列通用变速驱动用户手册
F2组：启动和制动参数
对位。名称：LCD显示设置范围单位：出厂
设置Modif。
F2.04直流注入制动
开始时间
制动时间0.0（禁用），0.1～30.0s 0.1s 0.0s○
F2.05加速/减速
g模式选择
ACC/DEC模式
0：线性加速/减速模式
1： S曲线
2： 自动加速/减速
1 0 ×
F2.06 S曲线起始段S曲线起始
秒
10.0%~50.0%（Acc/Dec时间）
F2.06+F2.07≤90% 0.1% 20.0% ○
F2.07 S曲线上升时间S曲线上升10.0%~80.0%（Acc/Dec时间）
F2.06+F2.07≤90% 0.1% 60.0% ○
F2.08停止模式停止模式
0:12月停止
1： 停下来
2： Dec停止加直流注入制动
1 0 ×
F2.09直流注入制动
停止时的初始频率INI BRAK FREQ 0.00~60.00Hz 0.01Hz 0.00Hz○
F2.10直流注入制动
车站等候时间
制动等待时间0.00~10.00s 0.01s 0.00s○
F2.11直流注入制动
停止电流
吹牛
停止
取决于驱动器的类型
P型：驱动器额定电流的0.0～80.0%
G型：0.0～100.0%驱动器额定电流
0.1% 0.0% ○
F2.12直流注入制动
停车时间
刹车时间
停止0.0（禁用），0.1～30.0s 0.1s 0.0s○
F2.13动态制动制动单元选择0：未使用动态制动
1： 采用动态制动
1 0 ×
F2.14
工作时间比
驱动器的制动套件
总工作时间
制动器的效用
单位
0.0~100.0%
注：适用于5.5/7.5kW驱动器的内置制动套件
在Dec过程中应采用动态制动
0.1% 2.0% ×
F3组：辅助参数
对位。名称：LCD显示设置范围单位：出厂
设置Modif。
F3.00运行反向禁用运行反向禁用0：运行反向启用1：运行反向禁用1 0×
F3.01反向/向前行驶，停止
时间
FWD/REV死区时间0~3600s 0.1s 0.0s○
F3.02保留保留-0*
F3.03保留保留-0*
F3.04保留保留-0*
F3.05汽车节能
活动
节能OPR 0:禁用1:启用1 0×
F3.06 AVR功能AVR功能0:禁用1:启用
2： 减速过程中禁用
1 2 ×
F3.07滑差补偿增益滑差补偿
增益0.0%~300.0%、0.1%和100.0%○
F3.08滑差补偿极限滑差补偿
极限
0.0%~250.0% 0.1% 200.0% ○
F3.09补偿时间补偿时间
常数
0.1~25.0s 0.1s 2.0s
F3.10载波频率
载波频率的调整
G型：5.5kW～45kW
P型：7.5kW～55kW:15k～3k
G型：55kW～90kW
P型：75kW～110kW:10k～1k
G型：110kW～220kW
P型：132kW～280kW:6k～0.7k
0.1kHz
8.0kHz
3.0kHz
2.0kHz
○
F3.11载波频率
自动调谐
载波频率
规则SELE
0:禁用
1： 启用
1 1 ○
94附录1参数
EV2000系列通用变速驱动用户手册
F3组：辅助参数
对位。名称：LCD显示设置范围单位：出厂
设置Modif。
F3.12电机音调调整电机调谐0~10 1 0○
F3.13点动频率点动操作频率0.10~50.00Hz 0.01Hz 5.00Hz○
F3.14点动间隔点动间隔时间0.0~100.0s 0.1s 0.0s○
F3.15点动操作的Acc时间点动Acc时间
F3.16点动操作的12点时间点动12点时间
0.1~60.0s 0.1○
F3.17附件时间2附件时间2
F3.18十二月时间2十二月时间2
F3.19加速时间3加速时间3
F3.20十二月时间3十二月时间3
F3.21附件时间4附件时间4
F3.22十二月时间4十二月时间4
0.1~3600
注：
默认单位为秒；Acc/Dec时间单位由F9.09决定
0.1
5.5kW~
22kWG：
6.0
30kW~
280kWP：
20.0
○
F3.23预设频率1多频带频率1 5.00Hz
F3.24预设频率2多频带频率2 10.00Hz
F3.25预设频率3多频带频率3 20.00Hz
F3.26预设频率4多频带频率4 30.00Hz
F3.27预设频率5多频带频率5 40.00Hz
F3.28预设频率6多频带频率6 45.00Hz
F3.29预设频率7多频带频率7
F0.13（频率下限）~F0.12（频率上限）0.01Hz
50.00Hz
○
F3.30跳频1跳频0.00~650.0Hz 0.01Hz 0.00Hz
F3.31跳频范围1跳频频带1 0.00~30.00Hz 0.01Hz 0.00Hz
F3.32跳频2跳频2 0.00~650.0Hz 0.01Hz 0.00Hz
F3.33跳频范围2跳频频带2 0.00~30.00Hz 0.01Hz 0.00Hz
F3.34跳频3跳频3 0.00~650.0Hz 0.01Hz 0.00Hz
F3.35跳频范围3跳频带3 0.00~30.00Hz 0.01Hz 0.00Hz
F4组：运行参数
参数名称LCD
Name LCD Display Setting range Unit Factory
setting
Modif.
F2.00 Start mode START MODE
0:start at start frequency
1:brake first, then start at start frequency
2:Start on the fly(including direction judgement), start at
start frequency when speed is zero
Note: Starting process includes switching on the drive for
the first time, recover of AC supply after power failure,
reset upon external fault and coast-to-stop
1 0 ×
F2.01 Start frequency START FREQ 0.20~60.00Hz 0.01Hz 0.50Hz ○
F2.02 Start frequency holding
time
HOLD TIME 0.0~10.0s 0.1s 0.0s ○
F2.03 DC injection braking
current at start
BRAK CURR AT
START
Depending on the type of the drive
P type: 0.0～80.0% of drive’s rated current
G type: 0.0～100.0% of drive’s rated current
0.1% 0.0% ○
Appendix 1 Parameters 93
EV2000 Series Universal Variable Speed Drive User Manual
Group F2: Starting and Braking Parameters
Para. Name LCD Display Setting range Unit Factory
setting Modif.
F2.04 DC injection braking
time at start
BRAK TIME 0.0 (disabled), 0.1～30.0s 0.1s 0.0s ○
F2.05 Accelerating/deceleratin
g mode selection
ACC/DEC MODE
0:Linear Accelerating / decelerating mode
1:S curve
2:Auto Accelerating/decelerating
1 0 ×
F2.06 Start section of S curve S CURVE START
SEC
10.0%~50.0%(Acc/Dec time)
F2.06+F2.07≤90% 0.1% 20.0% ○
F2.07 Rising time of S curve S CURVE UP 10.0%~80.0%(Acc/Dec time)
F2.06+F2.07≤90% 0.1% 60.0% ○
F2.08 Stopping Mode STOP MODE
0: Dec to stop
1: Coast to stop
2: Dec to stop plus DC injection braking
1 0 ×
F2.09 DC injection braking
initial frequency at stop INI BRAK FREQ 0.00~60.00Hz 0.01Hz 0.00Hz ○
F2.10 DC injection braking
waiting time at stop
BRAK WAIT TIME 0.00~10.00s 0.01s 0.00s ○
F2.11 DC injection braking
current at stop
BRAK CURR AT
STOP
Depending on the type of the drive
P type: 0.0～80.0% of drive’s rated current
G type: 0.0～100.0% of drive’s rated current
0.1% 0.0% ○
F2.12 DC injection braking
time at stop
BRAK TIME AT
STOP 0.0 (disabled), 0.1～30.0s 0.1s 0.0s ○
F2.13 Dynamic braking BRAK UNIT SELE 0: Dynamic braking is not used
1: Dynamic braking is used
1 0 ×
F2.14
Ratio of working time of
braking kit to drive’s
total working time
UTILITY OF BRAK
UNIT
0.0~100.0%
Note: valid for the built-in braking kit of 5.5/7.5kW drive
and dynamic braking should be applied in Dec process
0.1% 2.0% ×
Group F3: Auxiliary parameters
Para. Name LCD Display Setting range Unit Factory
setting Modif.
F3.00 Run reverse disabled RUN REV DISABLE 0:Run reverse enabled 1:Run reverse disabled 1 0 ×
F3.01 Run reverse/forward dead
time
FWD/REV DEAD TIME 0~3600s 0.1s 0.0s ○
F3.02 Reserved RESERVED - - 0 *
F3.03 Reserved RESERVED - - 0 *
F3.04 Reserved RESERVED - - 0 *
F3.05 Auto energy saving
operation
ENERGY-SAVING OPR 0:disabled 1:enabled 1 0 ×
F3.06 AVR function AVR FUNC 0: disabled 1:enabled
2: disabled in decelerating process
1 2 ×
F3.07 Gain of Slip compensation SLIP COMPENSATION
GAIN 0.0%~300.0% 0.1% 100.0% ○
F3.08 Slip compensation limit SLIP COMPENSATION
LIMIT
0.0%~250.0% 0.1% 200.0% ○
F3.09 Compensation time COMPENSATION TIME
CONST
0.1~25.0s 0.1s 2.0s ×
F3.10 Carrier frequency
adjustment CARRIER FREQ
Type G: 5.5kW～45kW
Type P: 7.5kW～55kW: 15k～3k
Type G: 55kW～90kW
Type P: 75kW～110kW: 10k～1k
Type G: 110kW～220kW
Type P: 132kW～280kW: 6k～0.7k
0.1kHz
8.0kHz
3.0kHz
2.0kHz
○
F3.11 Carrier frequency
auto-tuning
CARRIER FREQ
REGULATION SELE
0:disabled
1:Enabled
1 1 ○
94 Appendix 1 Parameters
EV2000 Series Universal Variable Speed Drive User Manual
Group F3: Auxiliary parameters
Para. Name LCD Display Setting range Unit Factory
setting Modif.
F3.12 Motor tone adjustment MOTOR TUNING 0~10 1 0 ○
F3.13 Jog frequency JOG OPR FREQ 0.10~50.00Hz 0.01Hz 5.00Hz ○
F3.14 Jog interval JOG INTERVAL TIME 0.0~100.0s 0.1s 0.0s ○
F3.15 Acc time of Jog operation JOG ACC TIME
F3.16 Dec time of Jog operation JOG DEC TIME
0.1~60.0s 0.1 ○
F3.17 Acc time 2 ACC TIME2
F3.18 Dec time 2 DEC TIME2
F3.19 Acc time 3 ACC TIME3
F3.20 Dec time 3 DEC TIME3
F3.21 Acc time 4 ACC TIME4
F3.22 Dec time 4 DEC TIME4
0.1~3600
Note:
Default unit is second; unit of Acc/Dec time is decided by F9.09
0.1
5.5kW~
22kWG:
6.0s
30kW~
280kWP:
20.0s
○
F3.23 Preset frequency 1 MULTIBAND FREQ 1 5.00Hz
F3.24 Preset frequency 2 MULTIBAND FREQ 2 10.00Hz
F3.25 Preset frequency 3 MULTIBAND FREQ 3 20.00Hz
F3.26 Preset frequency 4 MULTIBAND FREQ 4 30.00Hz
F3.27 Preset frequency 5 MULTIBAND FREQ 5 40.00Hz
F3.28 Preset frequency 6 MULTIBAND FREQ 6 45.00Hz
F3.29 Preset frequency 7 MULTIBAND FREQ 7
F0.13 (Lower limit of frequency) ~F0.12(upper limit of frequency) 0.01Hz
50.00Hz
○
F3.30 Skip frequency 1 SKIP FREQ1 0.00~650.0Hz 0.01Hz 0.00Hz ×
F3.31 Range of skip frequency 1 SKIP FREQ BAND1 0.00~30.00Hz 0.01Hz 0.00Hz ×
F3.32 Skip frequency 2 SKIP FREQ2 0.00~650.0Hz 0.01Hz 0.00Hz ×
F3.33 Range of skip frequency 2 SKIP FREQ BAND2 0.00~30.00Hz 0.01Hz 0.00Hz ×
F3.34 Skip frequency 3 SKIP FREQ3 0.00~650.0Hz 0.01Hz 0.00Hz ×
F3.35 Range of skip frequency 3 SKIP FREQ BAND3 0.00~30.00Hz 0.01Hz 0.00Hz ×
Group F4: Operating Parameters
Para Name LCD Display Setting range Unit Factory
setting
Modif.
F4.00
PLC operation
mode
selection
PLC OPR
MODE
Unit’s place of LED: PLC operation mode
0:disabled 1:Stop after operating for 1 cycle
2: Holding at the final value after single cycle of operation
3:Operate continuously
Ten’s place of LED: Restarting mode after stopping
0:Run again from phase 1
1:Continue to run from the stopping phase
2:Operate at the time and frequency when the drive stops or fault occurs
Hundred’s place of LED: Save at power off
0:Not saving
1:Save the time and frequency at power off
Thousand’s place of LED: selecting the unit of time
0:second 1:Minute
1 0000 ×
F4.01 Phase 1 setup STAGE 1
SET
Unit’s place of LED: Frequency setting
0:Pre-set frequency 1(F3.23) 1:Decided by F0.00 parameter
2:Close loop reference 1(F5.20) 3:Decided by F5.01 parameter
Ten’s place of LED: Running direction selection
0:Run forward 1:Run reverse
2:Decided by operating instructions
Hundred’s place of LED:Acc/Dec time selec
