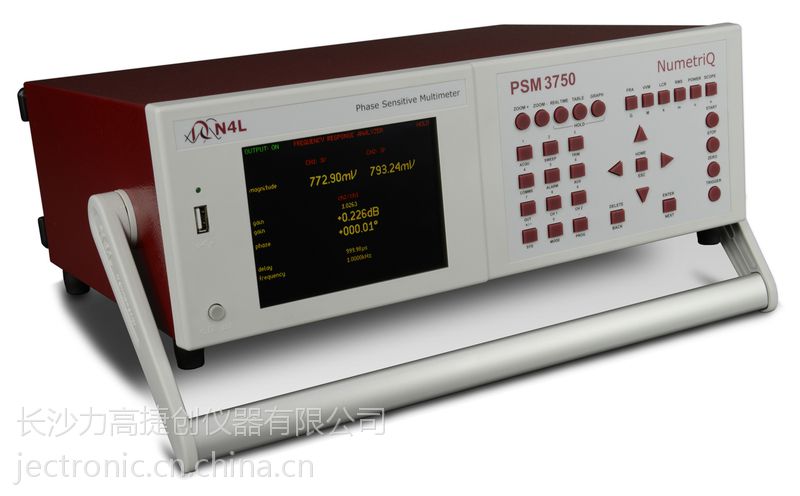

英国牛顿N4L PSM3750 50MHZ高频率响应分析仪 频率特性分析仪
一、产品简介
N4L 公司革新产品PSM3750 应运而生，这款产品是N4L革命性的创新产品，频率达50MHZ，测试耐压高达500V，同时支持阻抗分析等功能，***性价比与竞争优势。
二、产品特点
High Accuracy - Wide Bandwidth - 500Vpk Inputs
Leading wideband accuracy Basic 0.02dB with class leading high frequency performance
Wide frequency range DC, 10mHz to 50MHz
High Voltage Floating Inputs Galvanically ***lated fully floating Inputs - 500Vpk range
Fully ***lated Generator Enables direct connection to feedback loops with the need for ***lation transformers
Leading phase accuracy 0.005 degrees plus 0.01 degrees per kHz
Versatile interfaces RS232, USB, optional LAN and GPIB
PC software options Remote control, tables, graphs and database managment of results
Various Measurement Modes FRA, PAV, POWER, LCR, RMS Voltmeter, Scope
三、产品详细参数
Frequency Response Analyser ： Frequency Range 10uHz - 50MHz Gain Accuracy in dB 0.01dB + 0.0001dB/kHz <5MHz0.1dB + 0.04dB/kHz < 50MHz Phase Accuracy 0.025° < 10kHz0.05deg + 0.0001deg/kHz < 50MHz Frequency Source Generator or CH1 Input Measurement Real Time DFT, no missing data Speed Up to 100 reading per second Filter Selectable from 0.2 seconds
ACCESSORIES AND PORTS Datalog Memory High Speed Data Streaming Rate Window Buffer General Display Dimension Weight Program Stores Sweep Stores Remote Operation Temperature Power Supply CMRR Input Ranges Connectors Coupling 500Vpk from earth Scaling Ranging Imput Impedance |
