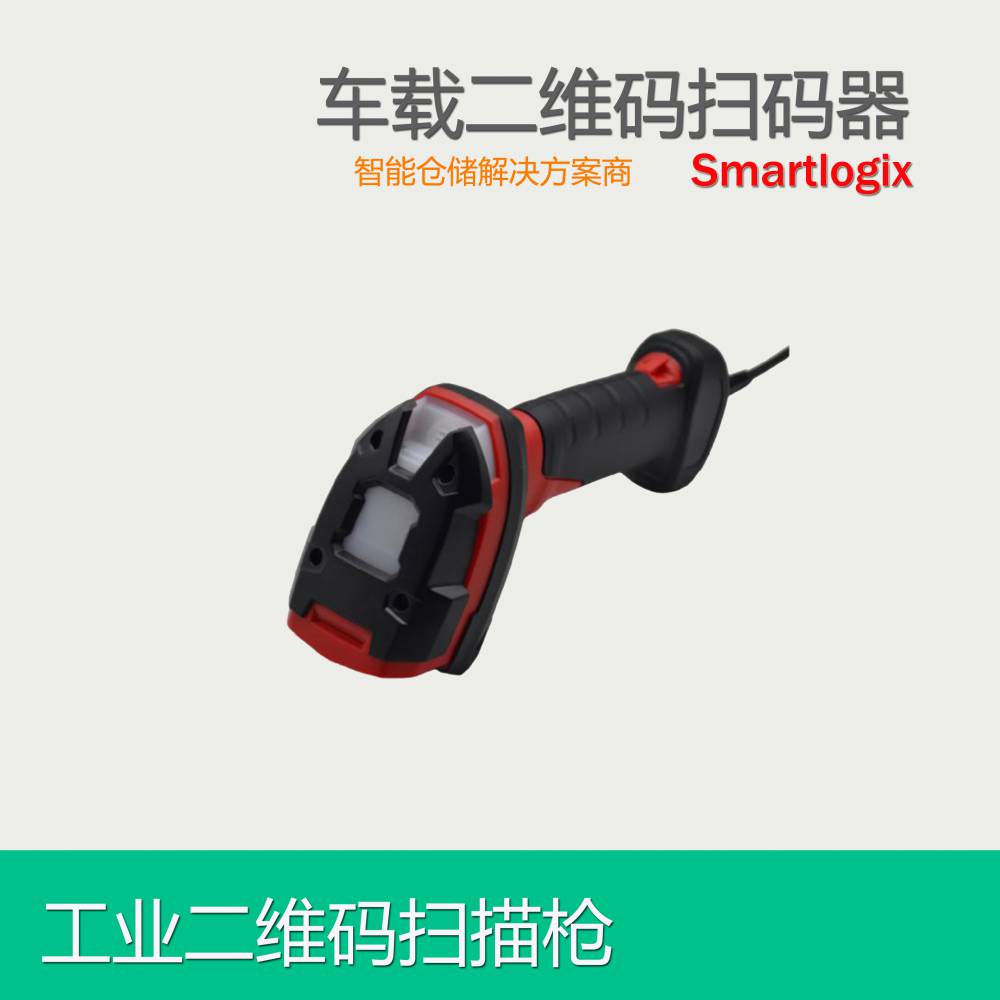

物联条码识别服务商-V300工业叉车二维码扫描枪
轻巧的外观设计，符合小场景配合商业收音机，操作建议，通过自感应的方式，商品经过或在窗口位置瞬间停留，即刻读取条码信息。在收银过程中操作人员无需持有扫描读取商品条码，形成自动扫描。对于商品条码在0-175mm 范围内任意读取。给使用人员轻松体验。适合收银人员自操作，也可以自助结算的应用环节使用。
开票功能：支持支付宝开票功能，方便您的使用Easy for E-pay barcode reading.
更流畅的手机支付条码的阅读能力：支持支付宝，微信支付功能
开机迅速，即插即用Short power up, hot-plug
物理特性Physical Characteristics | |
尺寸Dimensions: | 160mm x 64mmx 97mm |
重量Weight: | 140.5g |
电压Voltage: | 5±5%V |
开机电流Starting Current: | 160mA |
待机电流Stand-by Current: | 120mA |
工作电流Work Current: | 330mA |
性能指标Performance Characteristics | |
传感器像素Image (Pixels): | 640 pixels (H)x480 pixels (V) |
光源Light Source: | (Aimer) Red color LED; (Illumination) White color LED |
旋转倾斜偏转Roll / Pitch / Yaw: | 360°(Roll), ±65°(Skew) , ±65°(Pitch) |
打印对比度Print Contrast: | 20% minimum reflective difference |
接口支持Interfaces Supported: | USB |
运动容差Motion Tolerances: | >0.4m/s |
解码能力Symbology Decode Capability | |
一维条码/1-D:
| Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc |
二维条码/2-D: | PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39,DataMatrix, etc. |
条码精度Minimum Resolution: | ≥4mil |
用户环境参数User Environment | |
工作温度Operating Temperature: | -20°C to 60°C |
存储温度Storage Temperature: | -30°C to 70°C |
湿度Humidity: | 5% to 95% relative hum idity,non-condensing |
抗震性Shock Specifications: | Designed to withstand 1.2m(5’) drops |
环境光***Ambient Light Immunity: | 0-100,000 Lux. |
解码范围Decode Ranges | |
5 mil (code39) | 30mm-80mm |
13 mil (code39) | 30mm-180mm |
Performance may be impacted by bar code quality and environmental conditions | |
| |
