阿科玛NSF级PVDF Kynar 710
¥179.00
阿科玛注塑级PVDF Kynar 720
¥159.00
阿科玛高粘PVDF Kynar 740
¥159.00
厚壁挤出PVDF Kynar 1000HD
¥179.00
阿科玛中粘PVDF Kynar 6000HD
¥179.00
薄壁注塑PVDF Kynar 9000HD
¥179.00

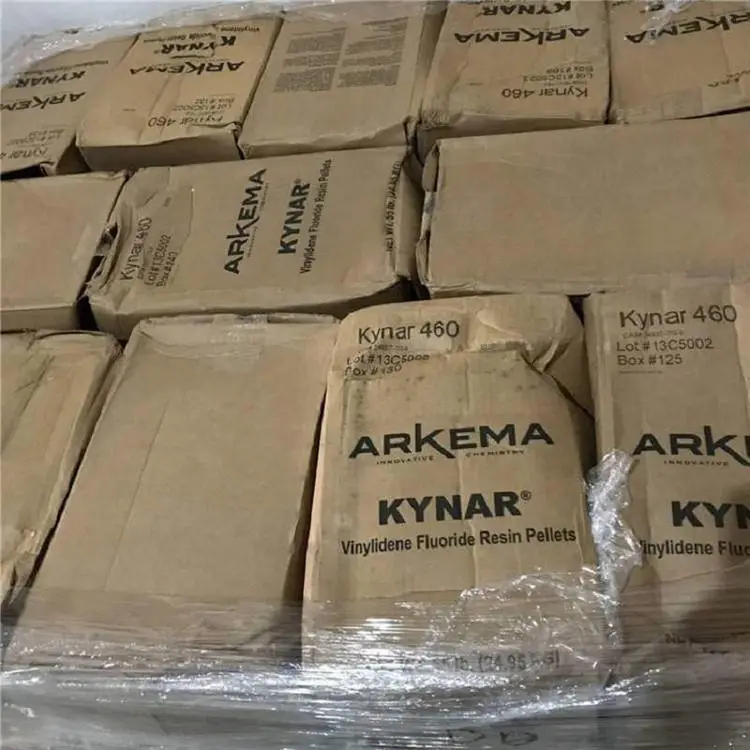

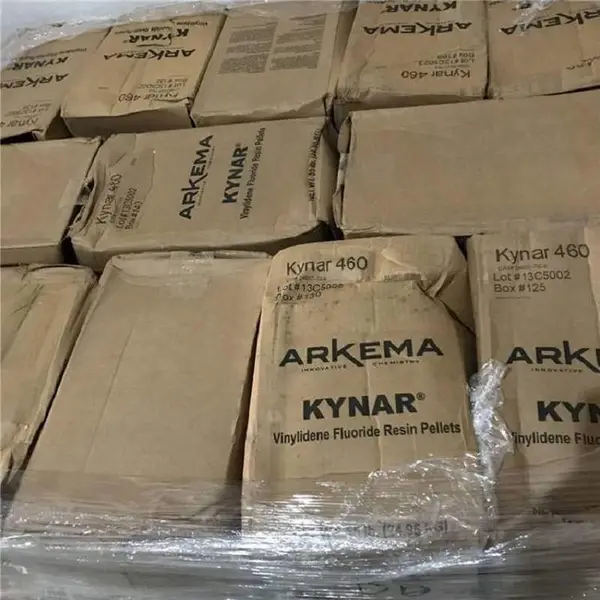

批发法国阿科玛电线挤出级PVDF Kynar 460
Density | 1.76 | g/cm | *** 1183 |
Melt Volume-Flow Rate (MVR)(230°C/21.6 kg) | 5.6 | cm/10min | *** 1133 |
Molding Shrinkage | *** 294-4 | ||
Across Flow | 2.0 | % | |
Flow | 2.0 | % | |
Water Absorption(Saturation, 23°C) | 0.040 | % | *** 62 |
| Mechanical | Nominal Value | Unit | Test Method |
Tensile Modulus | 1400 | MPa | *** 527-2 |
Tensile Stress(Yield) | 42.0 | MPa | *** 527-2 |
Tensile Strain(Yield) | 13 | % | *** 527-2 |
Nominal Tensile Strain at Break | > 50 | % | *** 527-2 |
| Thermal | Nominal Value | Unit | Test Method |
Heat Deflection Temperature(1.8 MPa, Unannealed) | 85.0 | °C | *** 75-2/A |
Glass Transition Temperature3 | -40.0 | °C | *** 11357-2 |
Melting Temperature3 | 161 | °C | *** 11357-3 |
CLTE - Flow(-40 to 100°C) | 1.1E-4 | cm/cm/°C | *** 11359-2 |
| Electrical | Nominal Value | Unit | Test Method |
Volume Resistivity | 2.0E+14 | ohms·cm | IEC 60093 |
Electric Strength | 63 | kV/mm | IEC 60243-1 |
Relative Permittivity | IEC 60250 | ||
100 Hz | 9.00 | ||
1 MHz | 6.70 | ||
Dissipation Factor | IEC 60250 | ||
100 Hz | 0.13 | ||
1 MHz | 0.070 | ||
| Flammability | Nominal Value | Unit | Test Method |
Flammability Classification(1.5 mm) | V-0 | IEC 60695-11-10, -20 | |
Oxygen Index | 43 | % | *** 4589-2 |
